INDIA Class
Speedfest
is an exciting, high-speed aircraft design competition which is
intended to foster enthusiasm for aviation, and unmanned aircraft
design. There are two flight classes: Alpha Class is the Advanced class which
is for collegiate-level teams. India Class is the Invitational class.
It is open to high-school level teams and teams with similar
skill level, on an invitational
basis. The
top 3 teams in each class will be recognized with awards. The
winners of each class will be awarded the Speedfest
Cup.
Competition Suggestions for India
Class Teams
Contents:
Mission
Requirements and Design Constraints
Flight Procedures and Scoring
Safety Requirements
General Aircraft Requirements
Contest Day Information
Eligibility
Entry Form Format
Deadlines
Contest Site
Mission Requirements
- Complete
as many laps as possible in 2 minutes on a 400
ft. course with an electric-powered airplane
Design Constraints
- Teams
will be provided with the following:
ONE of the following kits (we will give teams thier preference until supplies run out):

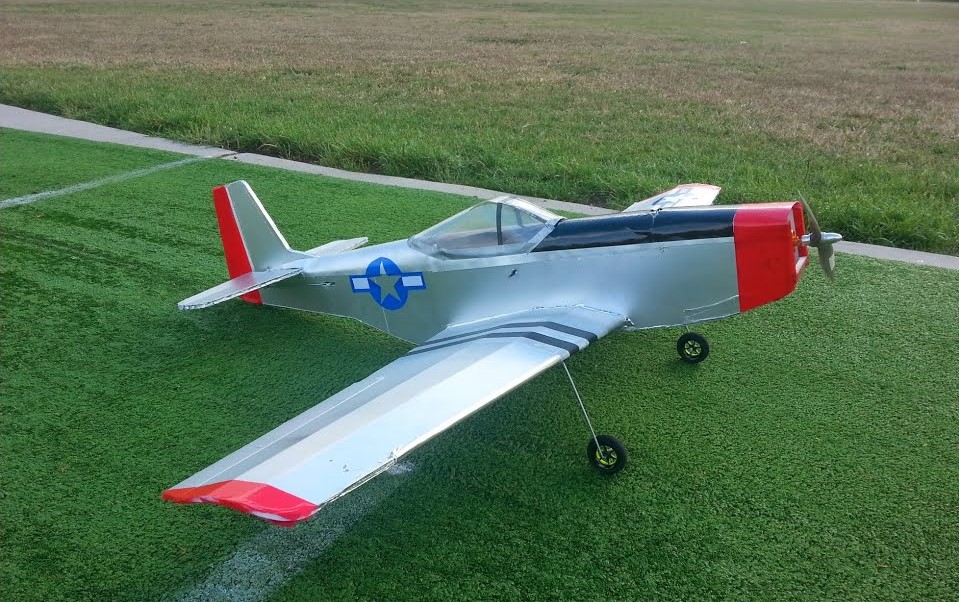

FT Mustang WR (1016mm)

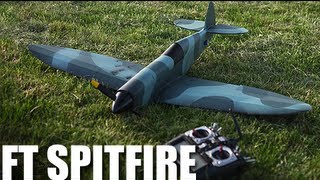

FT Spitfire WR (1080mm)
FT P-40 WR (1066mm)
- Additionally teams will be provided with:
- Teams
will need to purchase a 4-Channel (or more) transmitter and receiver.
(Teachers who participate in the Speedfest Takeoff event will be
eligible to receive a transmitter grant for their school)
Stock Category
- Teams may build the airplane in the STOCK configuration and be eligible for all India-Class awards as well as STOCK
category awards. Acceptable airframes are: FT Mustang WR, FT Spitfire WR, FT P-40 WR, FT Slinger (Discontinued)
- Exception to STOCK rule: Teams do NOT need to build
aircraft with landing gear. This is the only modification allowed.
- No deviations, modifications, omissions, or
additions to the kit other than propeller, paint, or other materials for coloring are allowed if a team wishes to compete for
STOCK awards.
- Any deviation from STOCK will result in placement of the team in the Modified category.
Modified Category

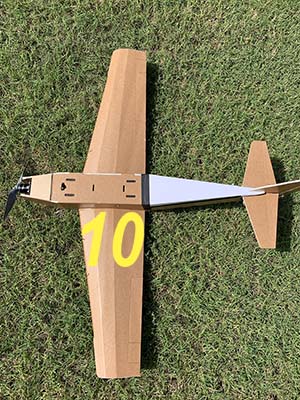

- Teams may make any airframe
redesign, modifications, and substitutions to improve performance,
subject to restrictions as follows:

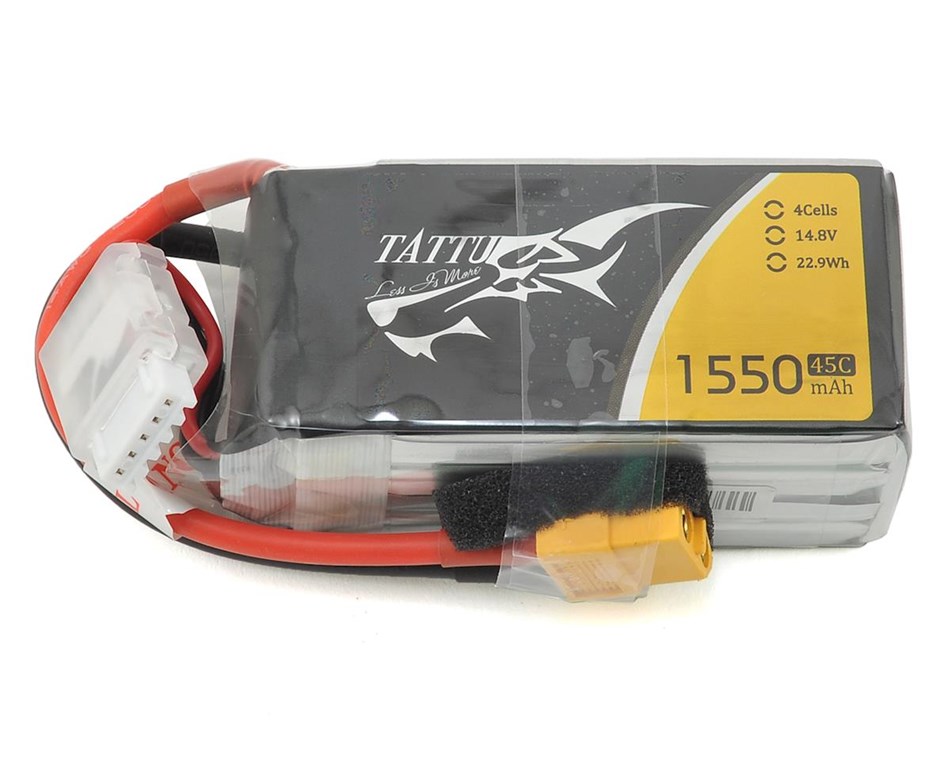

- Battery must be 4S or less, and no more than 1550 mah
- All skin surfaces of modified class must be
Flite Test water-resistant foam board with the exception of control surfaces. Control surfaces may be a more rigid material such as wood, or composite. Tape, paint, mylar or other thin coverings
may be used over the foam skins if desired.
- Longitudinal Center of Gravity (CG) must be no farther aft of the
leading edge of the root of the wing, than 1/4 of the average wing
chord.
The
plane will need to balance no further aft than there to demonstrate
compliance with the cg requirement. Recommendations for tail
sizing will be placed in Competition Suggestions for India
Class Teams
Flight
Procedures and Scoring
- Aircraft
will be flown in multi-plane heats.
- Planes

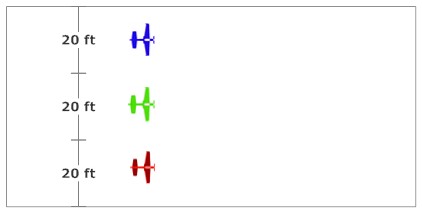

will be launched from a line abreast configuration. A sample 3-plane heat is shown below.

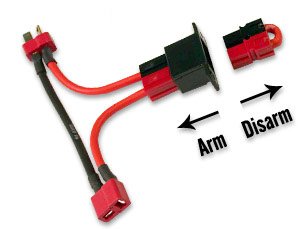

- Aircraft handlers and pilots are to arm their aircraft with the arming shunt after they reach their starting location.
- Airplanes will be hand-launch using an overhand or underhand toss.
The Starter
will call
"ready" at which time the pilots may apply full throttle.
- Timer starts when the Starters flag drops. If a team launches early, that team will DQ.
- Laps are performed in left-handed ovals as indicated in the
figure below. Planes do not need to fly around a flag, they
just must pass a turn line in space. If
wind conditions force takeoff to the north the first turn will be to the right.
- Pilots must fly the pattern beyond the fence line which is
approximately 120 feet away from where they will be standing.
Repeated breaking of the fence line will result in a DQ. Pilots
should practice flying this distance away so they are familiar with it
on Event Day.
- Each
team will provide two flight crew members to serve as turn
indicators, and will stand next to the Cut Judges. When a
plane crosses the turn line, they will signal their caller by
raising
a flag. Crew flaggers must not raise a flag prior to the
airplane
crossing the turn line, or it will be considered a "cut" resulting in a
DQ. This is the most common reason for a DQ.
- Cut Judges will use
a
sighting guide to
determine when a plane has passed a turn line, and if a flag has been
raised early, or if a plane has "cut" the turn. If a cut
occurs,
the judge will identify the number of the offending team, and
indicate a disqualification (DQ) for that
flight attempt by raising a flag. If a plane is DQ'ed, the
pilot should land as
soon as possible. A DQ results in no points being awarded for
that heat, which will affect a team's overall score.
- Teams
must bring their own "flags." The "flags" must be a board
such as plascore or foam posterboard with the team number on both
sides. The numbers must be as large as practical, but at least 20
inches tall. Flaggers will hold the signs with
both hands
and promptly raise the sign over their head as their plane crosses the
line. It is important that the signs are as legible as
possible
from 300 ft. away. The signs will be used by the caller to
call
turns, as well as by the judges to award a point.
Score:
Scoring is
based on distance traveled (flags) within two minutes,
on a course with 2 turn markers spaced 400ft. apart. One
point is
awarded for each turn line reached (including the first).
Awards:
The
Speedfest organizers will present 13 India Class awards in the following
7 categories. (Awards are changed for 2022) Criteria shown in parentheses:
- Speedfest Cup: (The top 7 (TBD) Flag scores for the day
will be eligible to fly in the final heat to compete for the Speedfest
Cup. The Cup may be won by a Stock or Modified entry.
Winner of the Cup will be the winner of the final heat. No other
rankings are awards are given for the Cup heat.)
- Speedfest Flag awards (Based on the best single
score for the day)
- 1st
Place
- 2nd
Place
- 3rd
Place
- 1st Place STOCK (airplane must be completely built to Stock plans)
- 2nd Place STOCK (airplane must be completely built to Stock plans)
- 3rd Place STOCK (airplane must be completely built to Stock plans)
- India
Class Promotional Video Award
(A
video is required of all India Class teams. Follow link for
details.)
- Best Airplane Build (Quality of overall build,
attention to detail, innovative design features)
- Best Airplane Graphics (Design and quality of
covering and / or paint scheme)
- Best Helmet (Helmet graphics)
- Team Spirit (Judged on sportsmanship, spirit,
integrity)
Tiebreakers:
- In
case of a tie for Speedfest Flag award, the higher Promotional
Video score will decide placement.
Safety Requirements
Safety
must be the number one priority of all contest participants. The
Speedfest organizers have gone to great lengths to keep the event safe
for participants and spectators. Please carefully note the
following:
Safety notice:
Electric-powered aircraft have different safety concerns than
the IC engined airplanes used in past Speedfest competitions.
Competitors should take great care in handling or working with the
airplanes since it is possible for the motor to spin up to full speed
instantly when a battery is connected. This can be due to an
electronic speed controller (ESC) malfunction, or improper attention to
detail when connecting the battery or transmitter. Always keep
face, hands, fingers, and tools clear of, and behind the propeller
whenever a battery is connected. At Speedfest, all aircraft
handlers are required to wear safety cut-resistant gloves (see below)
and eye protection when handling aircraft. Teams are also
encouraged to do this also when they are working on their airplanes at
home.
- Contestants are expected to conduct themselves, and operate
their aircraft in accordance to the AMA Safety Code. (the following
link contains all AMA documents including the Safety Code: http://www.modelaircraft.org/documents.aspx)
- Every
person beyond the spectator line (including officials), must
wear a helmet approved by OSHA, DOT, ANSI, SNELL,NOCSAE or other
recognized organization that certifies safety equipment.
There is
a very wide variety of helmets that meet these criteria including;
skateboarding helmets, bicycle helmets,
construction hard-hats,
etc.
- Any flight
crew member involved with starting the aircraft motor at any time
(flightline or
pits), or holding the airplane, must wear official safety glasses and
gloves (level-5 cut-resistant gloves are required
example).
- Teams
must make sure that people are standing clear of the plane of the
propeller in case of a blade failure. The safest
location is
behind the propeller. All individuals must be behind the
plane of
the propeller when running up the motor.
- Flight
Crew: Required minimum flight crew is 4 members
(Pilot, Caller, and 2 Flagmen). Flight crew must verify current
AMA
membership at the event. Student membership in AMA is $15. AMA
can assist with membership costs in the case of hardships by
contacting: education@modelaircraft.org Typical flight crew
functions
include:
- Caller:
Stands by the pilot to call turns.
- Crew Flagmen: (2). Stand near turn marker judges to indicate turn line
passage
- When a team
is called for a flight, only flight crew may enter the field
beyond the spectator area.
- All aircraft
to be flown must go through an airworthiness inspection outlined below.
- Teams must conduct test flights only
at an AMA-sanctioned airfield. There are sanctioned clubs
throughout the state. The AMA mentor can assist with
access
to a sanctioned flying site. Additionally, teams may go to
the AMA club locator site to find one.
- For
teams not familiar with AMA contest airworthiness inspections, it is
recommended that an experienced RC pilot or AMA Contest Director assist
the team with an airworthiness inspection prior to travelling to the
Speedfest in order to reduce the chances of a delay requiring repairs
or modifications.
- All team
members must be committed to the AMA safety code
when designing, building, and flying, unmanned aircraft.
- Motors must not be started in the teams pit area. There will
be designated areas for runup and testing.
- Proof of flight must be demonstrated prior to 9 AM on
contest day, or the team will not be allowed to compete.
Pilots
- Speedfest is
not an event
appropriate for novice pilots. Teams should use
experienced
pilots
with a record of safety.
- Contest organizers will provide a pilot upon request.
Teams may not however request a specific pilot.
- Pilot instructions:
- Safety must the primary responsibility of every pilot.
- If
there is some aspect of the airplane that the pilot deems unsafe, he
must ensure the team takes corrective action before flight.
- Pilots
must follow the instructions of the safety officer during flight.
If
instructed to abort, or even sacrifice the airplane for safety, the
pilot must do so immediately without question.
- Pilots
must never allow the airplane to cross a line defined by the West edge
of the runway. If the line is crossed, power must be cut
immediately, and a turn made away from the spectators.
- Pilots
will be instructed how far to the east to fly patterns in order to
maintain safe distances from the spectators. India class uses
a
275 ft. setback from the spectator line.
General
Aircraft Requirements
Propeller
Only propellers
designed for electric-powered aircraft are allowed. Note that
running the motor continuously with a prop larger than 9 inches in
diameter, will cause the motor to degrade and eventually burn
out..
Radio
Gear:
Only
2.4 GHz spread
spectrum radios will be allowed. A standard radio range check
should be conducted at the Speedfest airfield by the mentor or teacher,
who will then verify pass, to the technical inspection judges.
Covering:
Teams
are
encouraged to paint, tape, or somehow cover the wing with contrasting
colors on the top and
bottom of the wing. With the darker color on the bottom of the
wing. This will assist the pilot in quickly determining the
airplane's orientation. The team number should also have the
highest visibility possible. Unique coloring and/or patterning on
the tails and fuselage will aid in identification as well.
Team
Numbering
Each
team will mark their airplane with their team number which will be
assigned by the Speedfest organizers. Each airplane must be
numbered on the port wing (left side as viewed from sitting in the
cockpit) top AND bottom of the wing. Numbers must be as large as possible. The bottom of the number
should
face the wingtip so that the judges and flaggers can easily read the team number
during turns. Teams may choose the number colors, but the
color
chosen should be the highest contrast possible with the background
color of the wing so that it is easy to see from a distance.
Teams should take care to choose fonts, or number styles so
that
it is difficult to mistake a number when it is upside down (such as 6
and 9) or from other numbers (1 and 7, 4 and 9). The
picture below illustrates a properly numbered airplane:
Preflight
Airworthiness Inspection of Aircraft
Prior
to
competition, all aircraft shall undergo a safety inspection.
Safety inspections will be conducted on a first come, first
served basis. Teams are encouraged to go through safety inspections on
the Friday afternoon of Speedfest so as to not miss any flight
opportunities.
The overall quality of construction must be considered safe and
airworthy.
Safety inspectors will be checking the following:

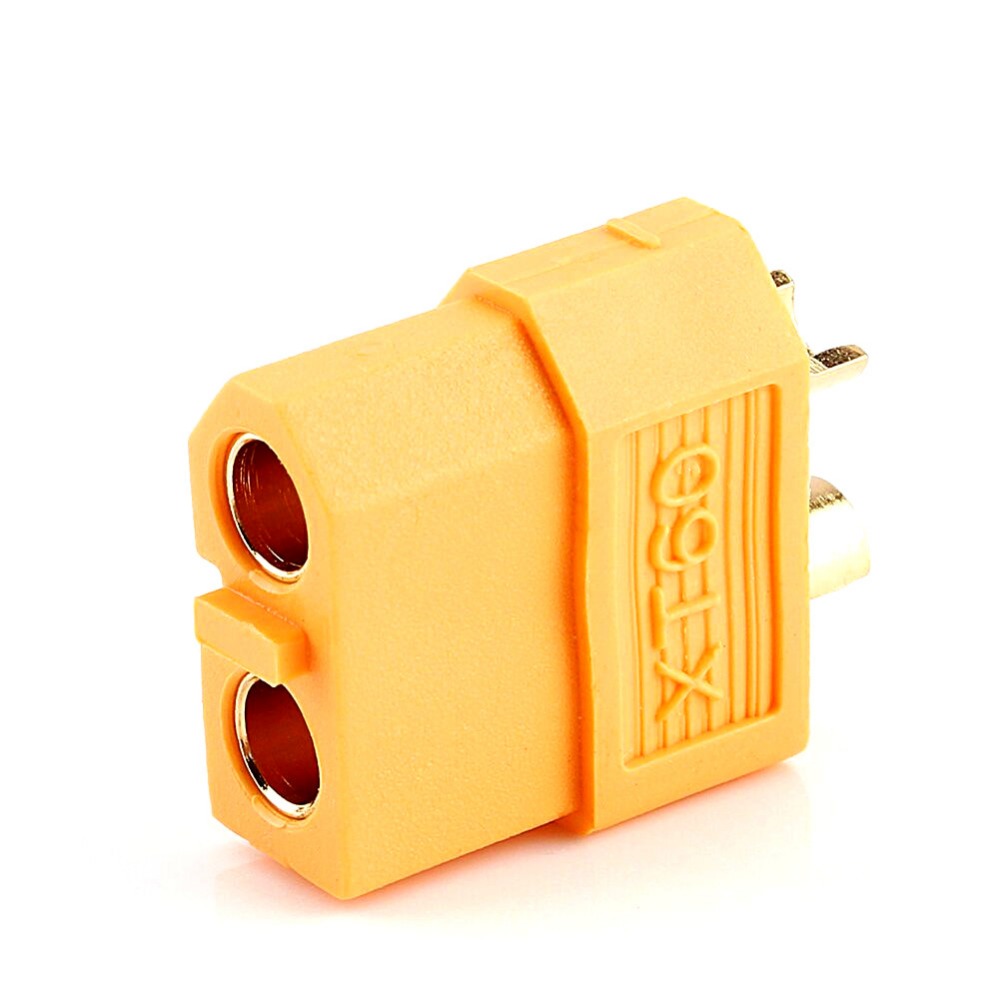

- All flight batteries must have a female XT60 connector on the battery side:
- Batteries must be strapped or otherwise mechanically held in
place. Tape is not acceptable. Velcro is only acceptable if
it completely straps around the battery and mechanically secures to
structure.
- Aircraft
must have a safety arming shunt that disconnects the propulsion battery and is easily accessible and always visible from the
outside of the airplane .
This example of an arming shunt
or arming switch is commercially available, although they can also be
made. It is recommended that XT60 connectors be used instead of
Deans connectors which have a higher rate of failure.
- Push/pull
rods or cables and control horns, shall be installed in
such a way that they will not become disconnected in flight. Clevises
must have a "keeper mechanism" such as a locking clevis or fuel tubing. Adjustable control linkages that use
set screws or friction are not acceptable.
- Control
surfaces shall be firm on the hinge line without excessive play.
- Servos shall
be mounted securely with little play.
- Any servo wire extensions used must have connections secured
with a servo lead lock (electrical tape or shrink wrap is permitted).
- All screws
holding the motor to the mount and the mount to the firewall shall be secure.
- Check that transmitter used has a fail-safe set to throttle cut-off, and can indicate voltage low condition.
- Wings, if
removable, shall be securely attached to the fuselage by some
mechanical means such as bolts.
- The aircraft
shall be structurally sound as well as free of structural
damage which may
compromise safety.
- Range check verification with mentor or teacher
- Team
Flags and safety gear will be checked
- Proof
of prior flight. Teams must demonstrate proof of prior
flight.
This may be done using pictures or video evidence. Proof of
flight must be demonstrated prior to 9 AM on contest day, or the team
will not be allowed to compete.
Repairs:
Any
aircraft that has been damaged after a safety inspection or has a known
history of problems shall not be permitted to fly until it has been
satisfactorily repaired and re-inspected. Materials used for repair may
come from any source.
Confirmation of class
rules:
Judges will also confirm that all aircraft entered comply with the
Design Constraints. This will include inspection and
measurements of the airframe and motor for compliance.
Contest-Day
Information
- Teams are encouraged to have multiple
batteries. Electric power will be
provided for charging only, but teams must be also able to charge using DC power
(such as in a vehicle, or a portable 12v battery or power pack. Generators are not allowed) in case electrical power is interrupted or at full capacity with other teams charging.
- Each
team will be provided at least 3 flight attempt
opportunities. Maximum number of flight attempts depends on
several factors, but our objective will be 8 rounds. The best
score of
all attempts will be
retained.
- Speedfest
objectives and scoring have been designed to minimize the effect of
weather conditions. Expect competition to continue unless
winds
are
above 30 mph sustained with cross, or if there is continuous rain.
If all teams are not provided with 3 flight attempt
opportunities, the rain date will be used.
- Speedfest is
a competition between teams.
There are no restrictions on repairs,
spare parts, replacement aircraft, etc. Repaired and
replacement
planes must still
conform to the rules for a particular class. If an aircraft
is
damaged to an extent that airworthiness may be questioned, and is to be
re-flown, the airplane must go through the airworthiness inspection
again. Also, if a replacement plane is used, it
must also go through the airworthiness inspection.
- Teams
may request a Speedfest Pilot at the event, however, they may not
request a specific pilot. This is to make sure that heats may
be
scheduled efficiently, and without concern about which teams cannot fly
in the same heat. For teams that require a Speedfest pilot at
the
event, pilots will be assigned on a rotation.
- Mandatory
Items to bring:
- Current
AMA membership cards for flight crews
- Proof of flight
- Helmets, safety glasses, gloves, and flags, for
Flight Crew
listed above.
Registration
During
the designated time on the day of the event, flight crews must
register. Speedfest officials will then provide each with a
flight line pass. Registration consists of the following:
- Flight
crews must each show proof of current AMA membership
- Flight
Crews, advisors, and mentors should report with their airplane to have
a team photo taken.
Flight Sequence
- Teams will
be called based on the scheduled heats. Teams should be aware
of where they are in the heat schedule.
- When
teams are
called,
they will need to go to the hangar, and have a battery AND transmitter voltage check. Failure of the voltage
check
will result in DQ for that round.
- Teams will then move to the queue boxes which will be labeled 1-4,
corresponding to the starting sequence on the runway.
- Only
teams that are called to the flight line may pass the spectator line
and enter the course. They must wear the appropriate safety
gear.
- When called to the flightline, teams must identify their
plane and
flags to the judges table so the flag counting judges can identify the
planes.
- A two minute countdown timer will begin when teams are
called to the flight line. Within that time, teams must get
to
their starting location on the runway, and arm their
airplane.
When time expires, the flightline judge will clear the runway of
starters and spotters. If a team’s
airplane is not running at that time, they must immediately leave the
runway with the airplane and all flight gear. When the runway
is clear, the flightline judge will
immediately start the heat. When time expires, teams have two
minutes to land and clear the runway.
Speedfest
Team
Promotional Video Award
All India class teams are required to create a Team
Promotional
Video. Videos can
promote: their team, airplane, school,
Speedfest, or any
combination of these in an entertaining and informative way.
The videos can be as simple as an introduction to the team
taken with a smart phone camera, to as complicated as a fully edited
promotional music video.
Guidelines:
- Videos may
be no more than 2 minutes in length total. .
- May
not refer to specific competitors teams in a negative light.
- May
not contain material considered to be obscene by professional standards.
- Royalty-free
music is preferred.
Teams should test their videos on YouTube well in
advance of the deadline, so that they are
not removed or muted due to copyrighted music.
- Videos not meeting all guidelines will not be eligible for
voting.
Teams
will send the YouTube link to their videos to SpeedfestAero email
address no later than 7pm CST Monday, April 18,
and the winner will be
chosen by an appropriate method of electronic voting (TBA). There are no restrictions on who
may
vote. Votes will be accumulated from April 22, until
Speedfest contest day. The penalty
for a team not submitting the link to their video by the deadline, is
loss of their best heat score on contest day.
Eligibility
- Team
members (other than pilots and mentors), must be students of the
institution, or otherwise pre-approved by the contest director.
- Each team must have an advisor who is a teacher or other
approved representative from the institution.
- Each
team must have a mentor who is an AMA member and familiar with the
building and operation of remote control airplanes. The team advisor
can also be the mentor if appropriate. Mentors should be
positive, patient individuals, supportive and willing to help the
students learn. They should not lead the team. Speedfest
organizers can
assist with identifying mentors if requested. The mentor need-not be
the contest pilot. A contest pilot will be provided if requested.
- An institution may enter a second team only if the
following
conditions are met:
- The institution has participated in Speedfest previously.
- The reason for entry of more than one team is justified
based on excessive team size or some other compelling educational
rationale
- The
two teams must be distinct (as they are competing against each other).
There must be no members common to both teams other than
faculty/staff and/or the mentor. Team names and aircraft
markings
must be different.
Entry Form Format
The
team advisor (not the mentor) shall send
an email with all
of the following information, in the following
format, for each team entered:
-
Academic
institution name
-
Team Name
- Class to be
entered
- Team Advisor name
- Team Advisor email
- Team Mentor name
- Team Mentor email
In
the Subject line
of
your email write: “India Class Speedfest Entry Request, (Team
Name), (date)”
Subject line example:
India Class Speedfest Entry Request, SHS Lancers, 21Sept2012
Send
entries to:
- To
keep the Speedfest manageable and enjoyable, a limited number of teams
will be invited on a first-come basis.
Deadlines
- Teams
may enter at any time.
- Rules
are subject to change until September
30. After this date, rules become final.
- Promotional Video due no later than 7pm on Monday April 24.
Penalty for late or missing video is loss of best heat score.
Contest Site
Speedfest
is held at the
Unmanned
Aircraft Flight Station (UAFS) in Stillwater, Oklahoma.
GPS
Location:
lat=36.1632229 lon=-96.836514
Stillwater
Oklahoma is approximately 75 miles from two major airports: Tulsa
International Airport in Tulsa, OK, and Will Rogers Airport
in
Oklahoma City, OK.
Airfield Directions:
From all
directions, the best way to get to the UAFS is to drive to the
intersection of Hwy 51 (E 6th st.) and N. Clay Road (bulls-eye
in map below). Then take
Clay road north approximately 3.2 miles. The UAFS is just
north
of the intersection of N. Clay Rd. and E. Airport Rd.
Speedfest Takeoff Event
The NASA OKSG will be hosting a Speedfest India Class 2021-2022 “Take Off” educator event on Saturday, October 23rd,
2021, from 9 AM – 5 PM at the NASA OKSG STEM Engagement Center (SEC) on
the OSU campus. This is a FREE event for both educators who have
already entered a middle school/high school team into this year’s
Speedfest and those who are considering the opportunity for this school
year. During this event, participating educators will learn the
rules/requirements for Speedfest 2022, be immersed in the hands-on
inquiry-based Speedfest Curriculum created by the NASA OKSG (designed
to teach the concepts leading up to the plane build), have the
opportunity to tour various OSU MAE labs/facilities, and receive plane
kits. Those educators who participate in the “Take Off” event in its
entirety, will have the opportunity to apply for grants which will
provide their team with a transmitter/receiver and a joystick/RC
airplane simulator software and will receive access to the Speedfest
Curriculum. Lunch will be provided. Registration is first-come,
first-serve to the first 24 completed registration by middle
school/high school educators. A registration link for this event is below:
TAKEOFF EVENT FLYER
REGISTRATION LINK
